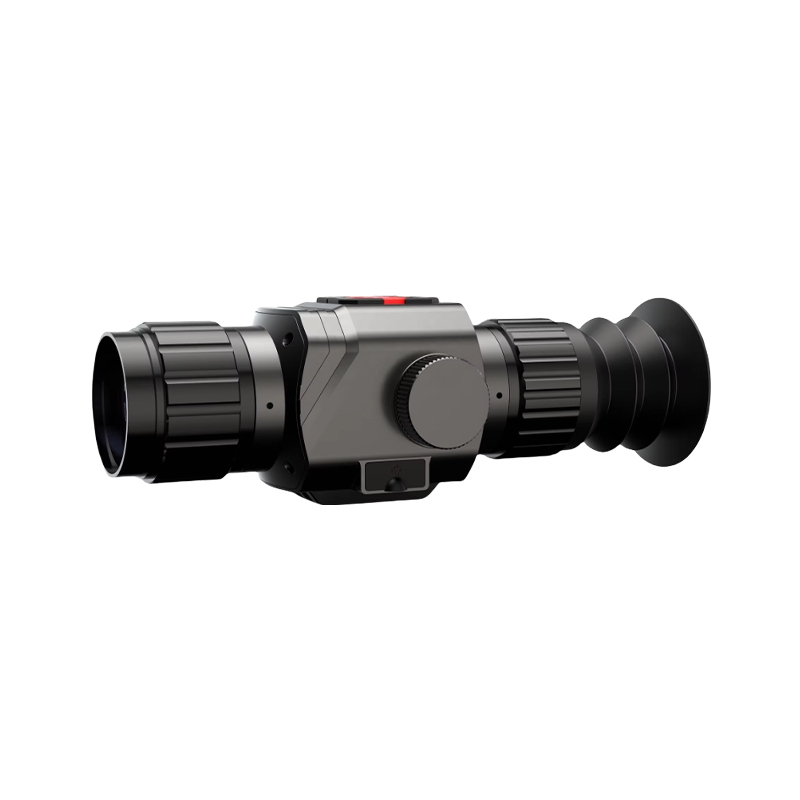

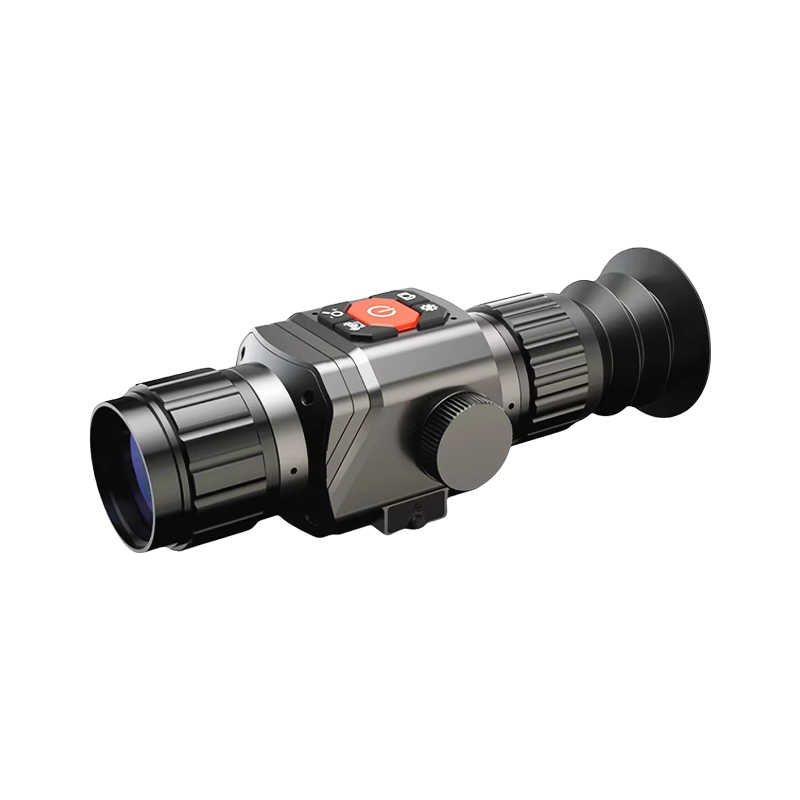

Thermal Imager



Detection Distance

Shot

19mm

25mm

35mm

54mm

75mm

People

897m

1181m

1653m

2550m

3542m

Wild Boar

792m

1042m

1458m

2250m

3125m

Vehicle

2375m

3125m

4375m

6750m

9375m

Identification Distance

People

224m

295m

413m

638m

886m

Wild Boar

198m

260m

365m

563m

781m

Vehicle

594m

781m

1094m

1688m

2344m

Technical Parameters

Detector Type

Vanadium Oxide Uncooled Focal Plane

Vanadium Oxide Uncooled Focal Plane

Infrared Resolution

256*192

384*288

Pixel Size

12um

17um

Wavelength Range

8um-14μm

8um-14μm

Frame Rate

≤ 25Hz

≤ 50Hz

Focal Length

19mm

25mm

25mm

35mm

54mm

Field Of View

9.24°×7.08°

7.03°×5.39

14.9°x112°

10.7*x8.0°

6.9°×5.2

Noise Equivalent Temperature Difference (Netd)

≤50mk@25 ℃, @f/1.0

≤40mk@25℃，@f/1.0

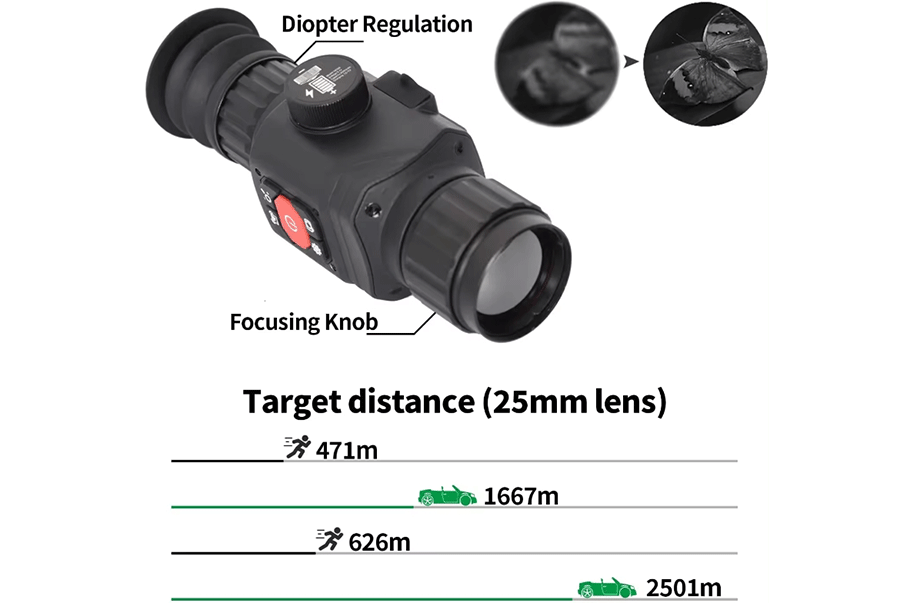

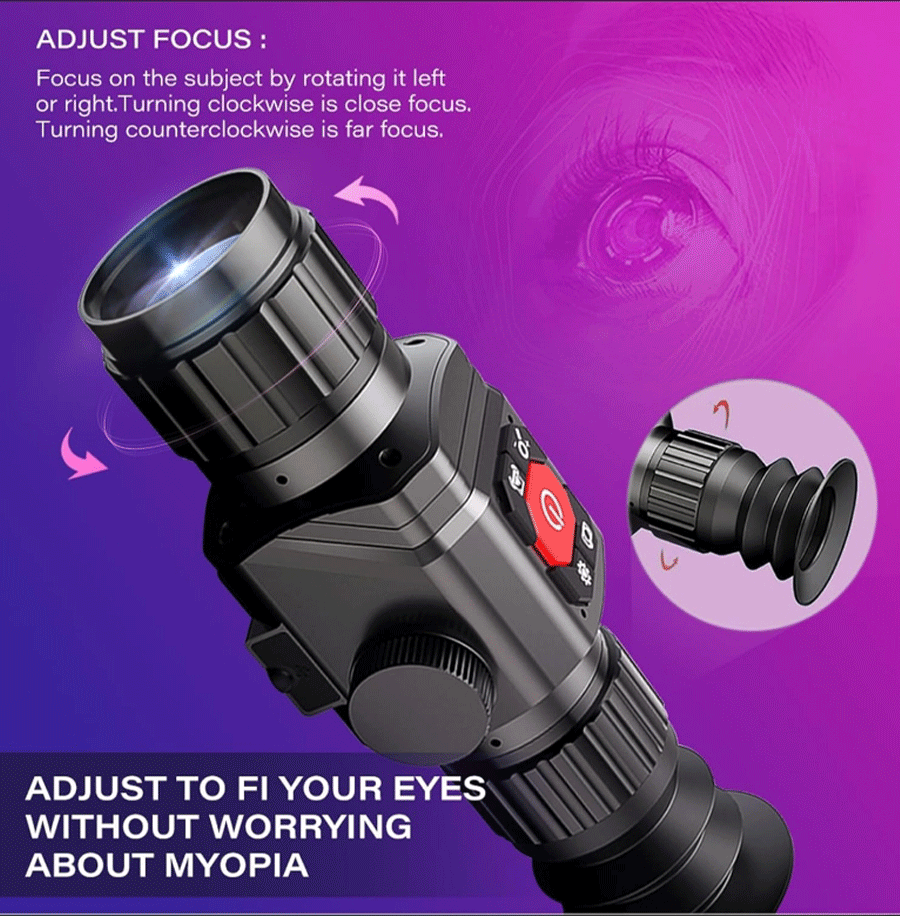

Diopter Adjustment

±5SD

±4SD

Display (Resolution)

0.39-inch OLED (1440x1080)

0.39-inch OLED (1024x768)

Electronic Zoom

1x/2x/4x

2x /4x /8x/16x

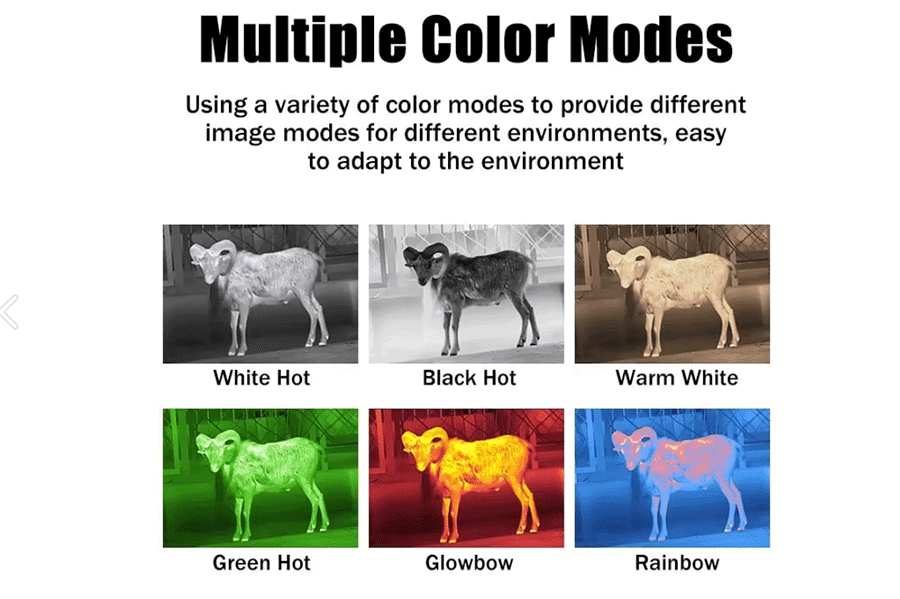

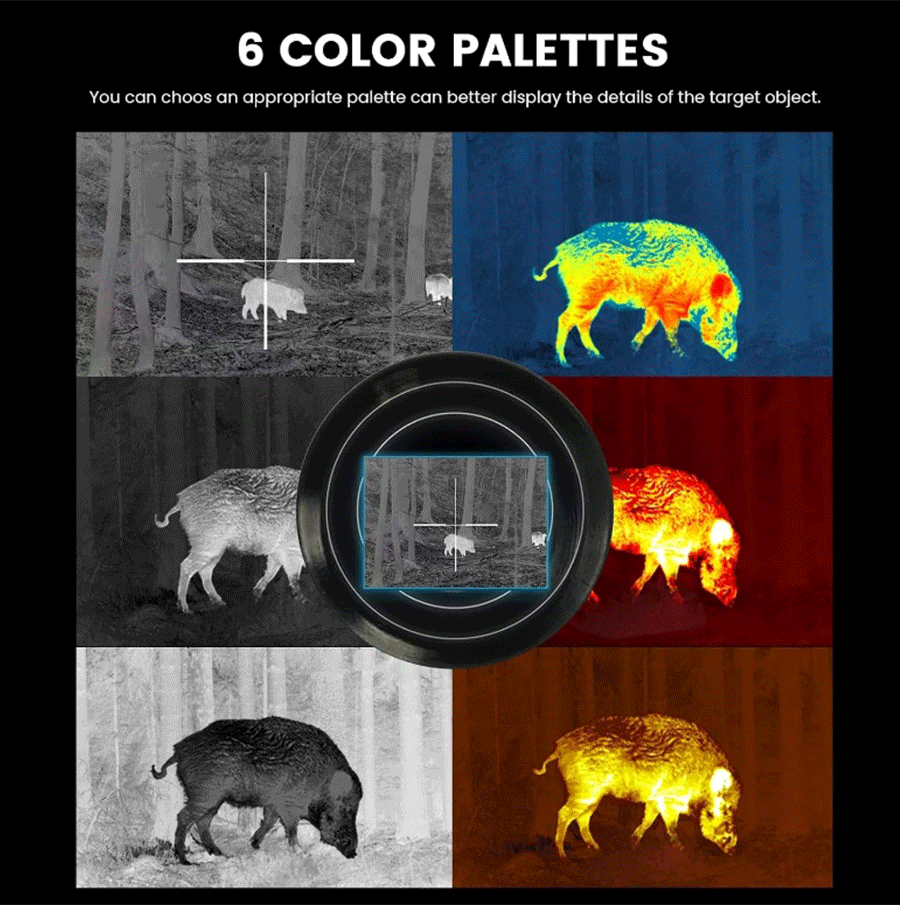

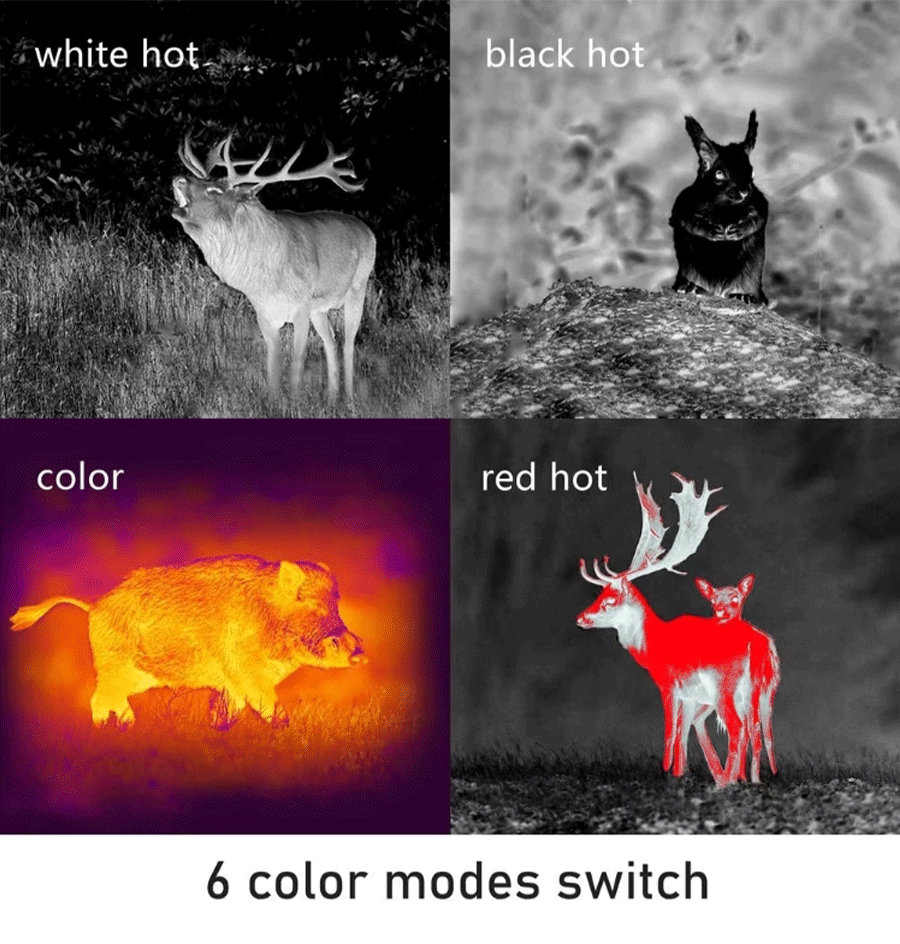

Color Palette

White Hot, Black Hot, Red Hot, Rainbow, Iron Red, Glimmer

White Hot, Black Hot, Rainbow, Hot Metal, Yellow Saturation, Bird Watching Mode

Language

Simplified Chinese, Traditional Chinese, English, Russian

Chinese, English

Built-In Storage

Standard 8gemmc

Standard 16gemmc

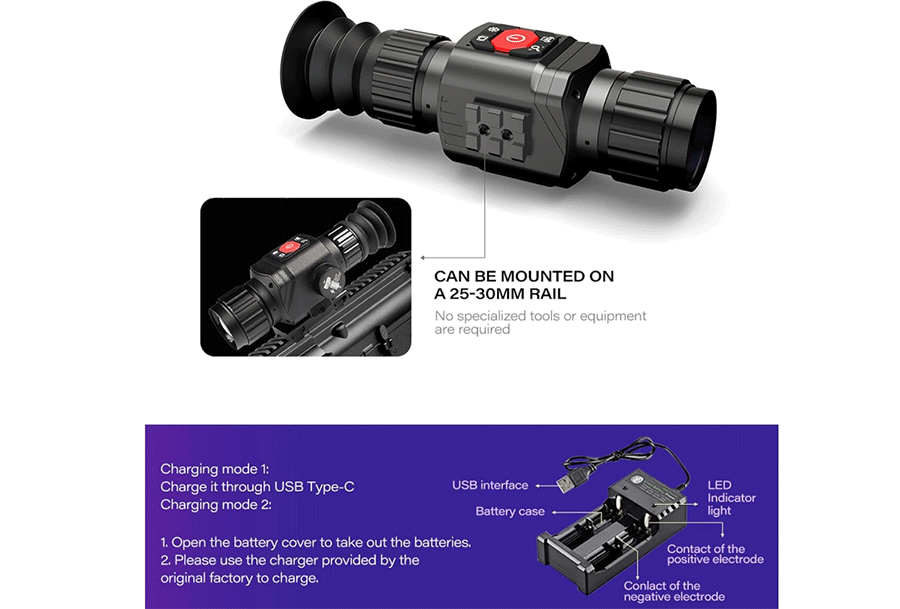

Battery

18500 Removable Rechargeable Lithium Battery (2040mah)

18500 Removable Rechargeable Lithium Battery (2040mah)

Battery Life

≤5 Hours

≤6 Hours

Operating Temperature

·-20 Degrees ~ 60 Degrees

·-20 Degrees ~ 50 Degrees

Storage Temperature

·-30 Degrees ~ 70 Degrees

·-30 Degrees ~ 60 Degrees

Protection Level

≤IP65

≤IP66

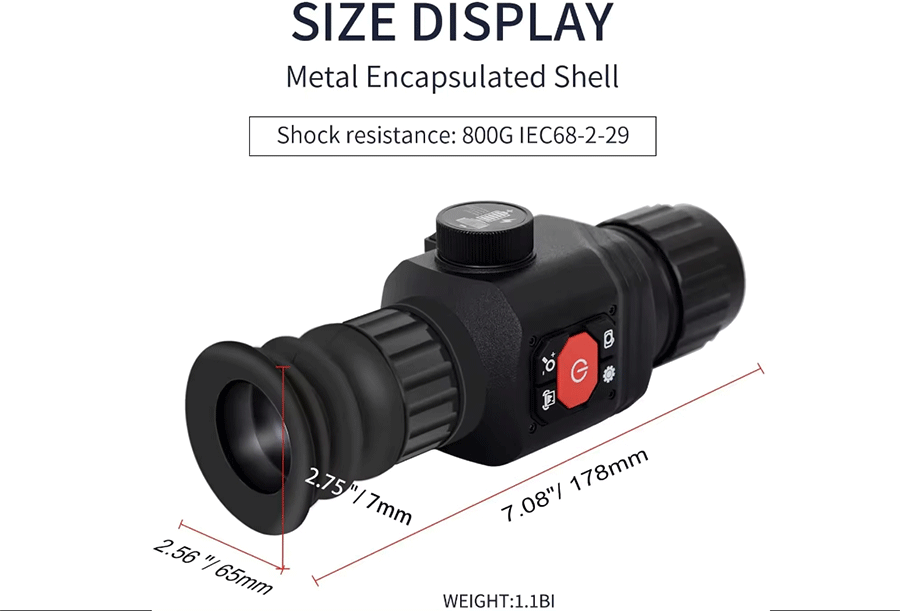

Shock

800GIEC 68-2-29

≤1200G

None

200*55*60 mm /510g

Packing Size

350*290*110mm/1968g

Outer Box Size And Weight

5pcs/box/550*370*390 mm/11.2 KG
