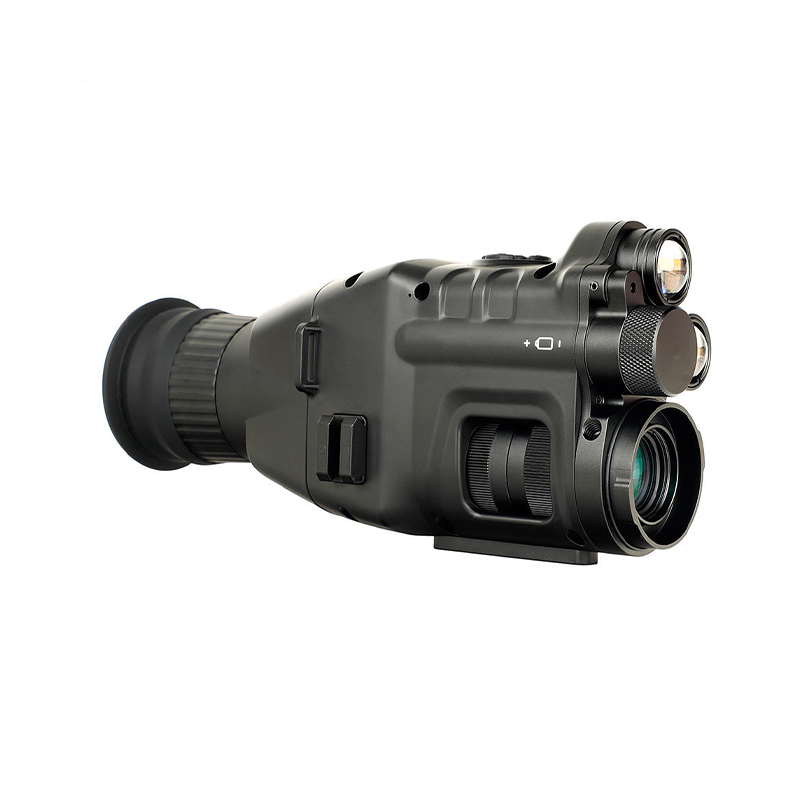

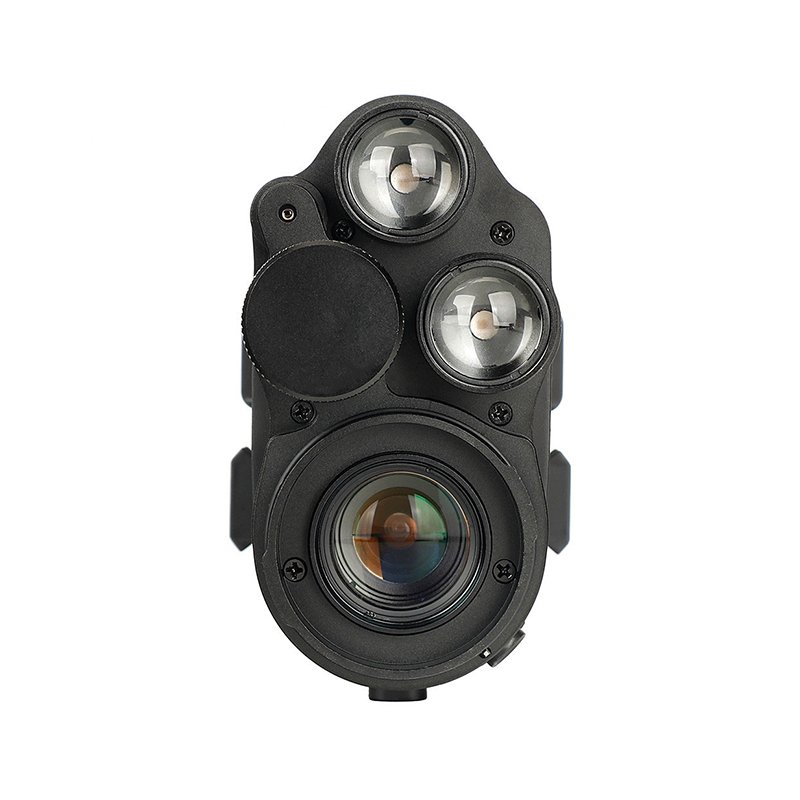

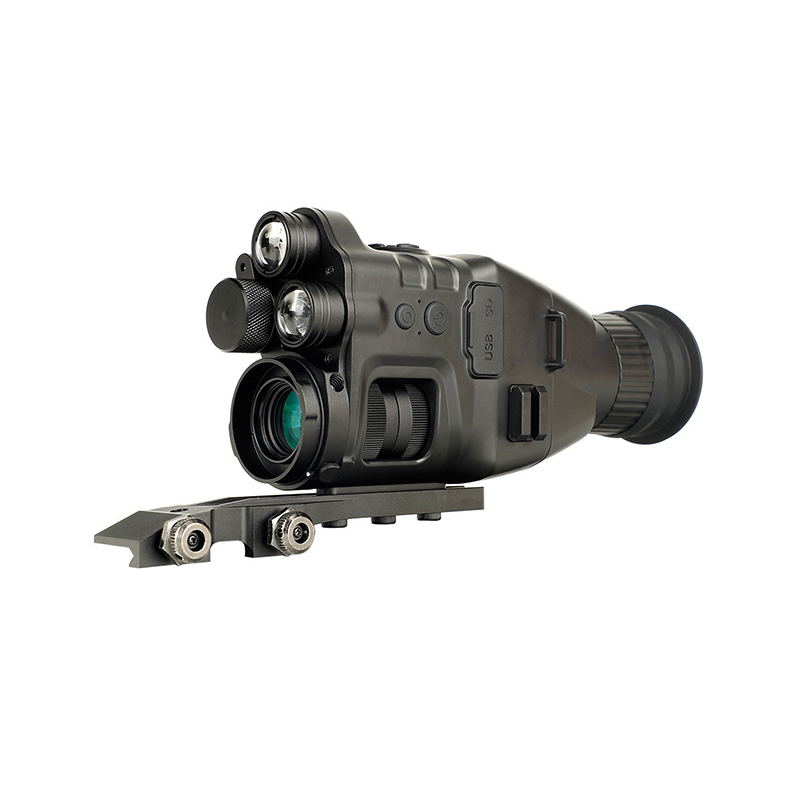

Night Vision Monocular

ID

Catalog

Function Description

1

Magnification 1X - 24X

2

Optical Performance

1X - 8X Optical, Max 3X Digital

3

Angle Of View   10° - 95°

4

Objective Aperture 30mm

5

Optical Performance

Exit Pupil Distance  90mm

6

Focal length of Objective Lens  5-50

7

3m - ∞ in daytime; Viewing in the darkness up to 400M (monochrome)

8

Video Output

800 X 480 OLED Display

9

OSD menu display

10

Imager

CMOS High-sensitivity Sensor

11

Resolution  1920 X 1080

12

IR LED

5W Infared LED with 850nm and 940nm

13

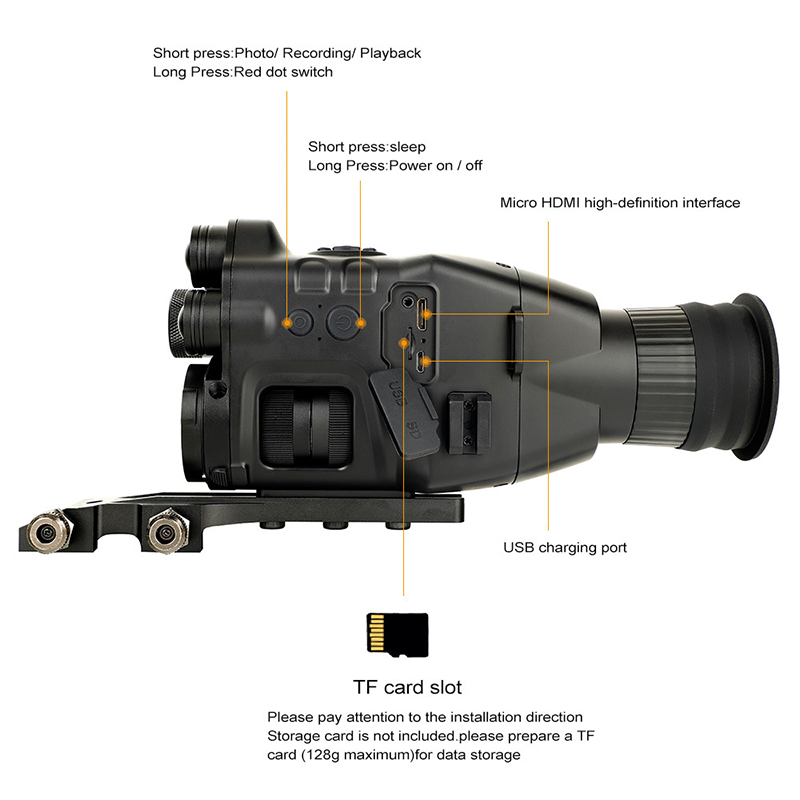

TF Card

Max. Support 128GB SD Card

14

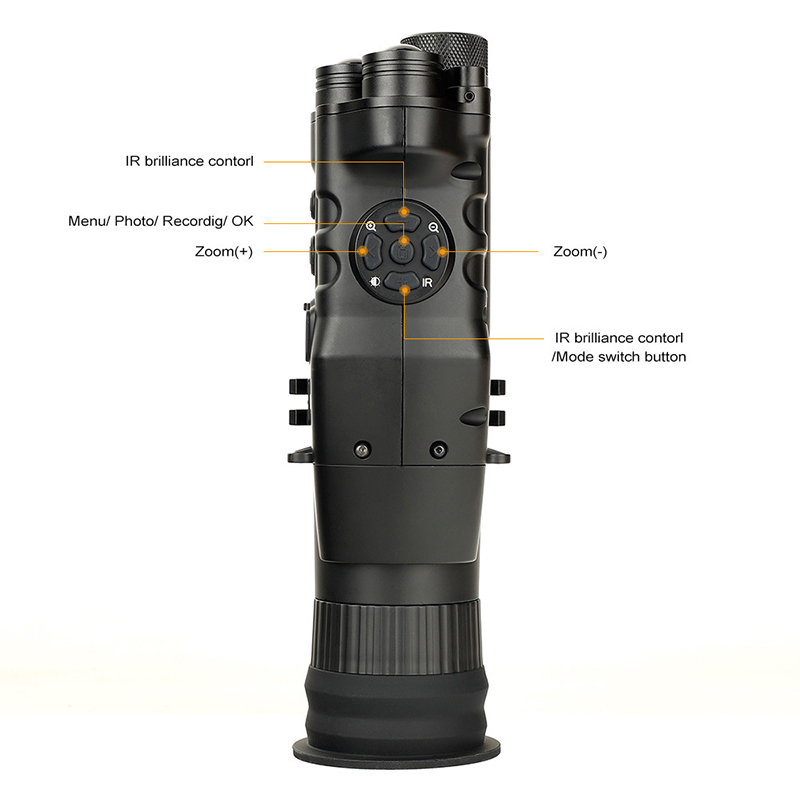

Hardware Buttons

Power On/Off

15

Snap

16

MODE Selection/MENU

17

Zoom

18

IR Switch

19

Operation

Preview

20

Record JPEG file in TF storage

21

Capture AVI file in TF storage

22

Playback Media file from SD storage

23

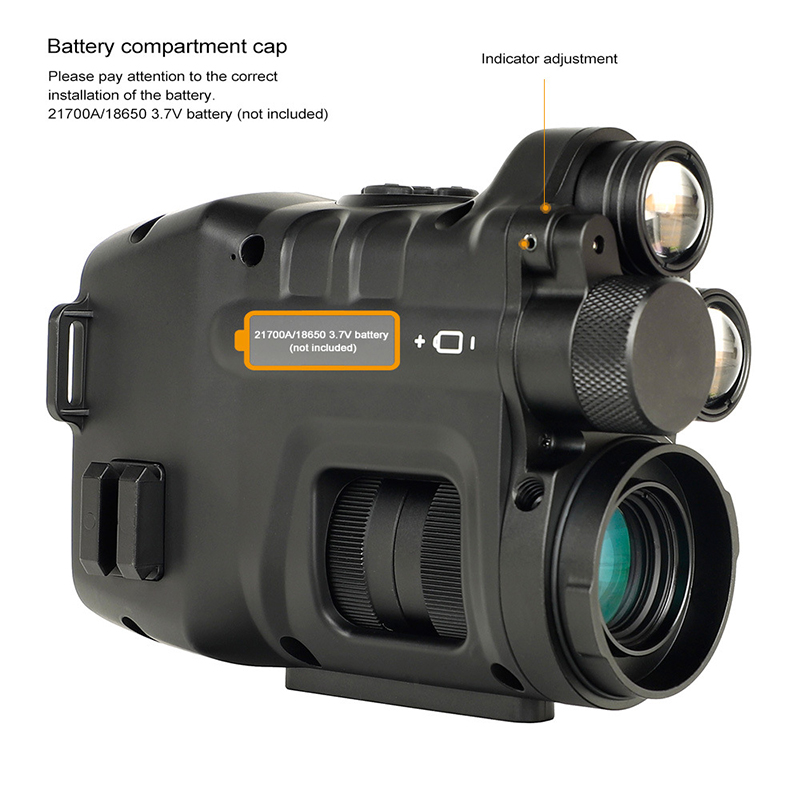

Power

1pc 18650/21700 Rechargeable Battery

24

Low Battery Warning

25

System

4 Modes ( Photo, Video, Playback, Menu)

26

Single frame Image Capture

27

Video Image Record

28

Playback Image

29

Delete Image

30

5 levels IR switch

31

SD Card Format

32

Auto Power Off (Off / 3min / 5min / 10min)

33

Language: English/Français/Español/Português/Deutsche/Italiano/Simplified Chinese/ Traditional Chinese/Pусский/Japanese/Polskie

34

System Reset

35

Light Freq. 50/60HZ

36

RTC Setting

37

Version

38

Size

Size 220 X 110 X 60mm

39

Weight 525g

40

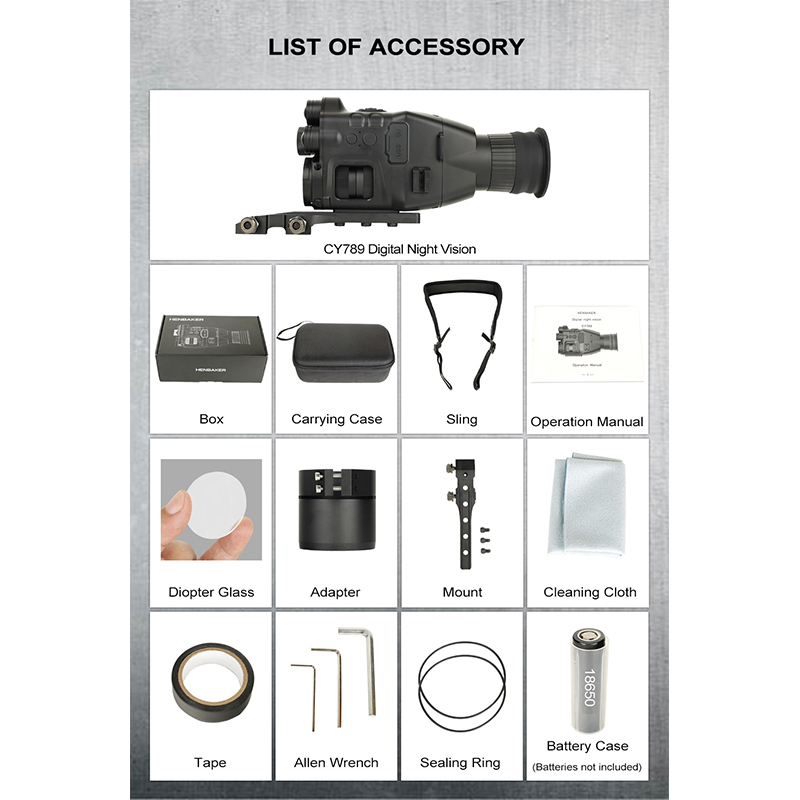

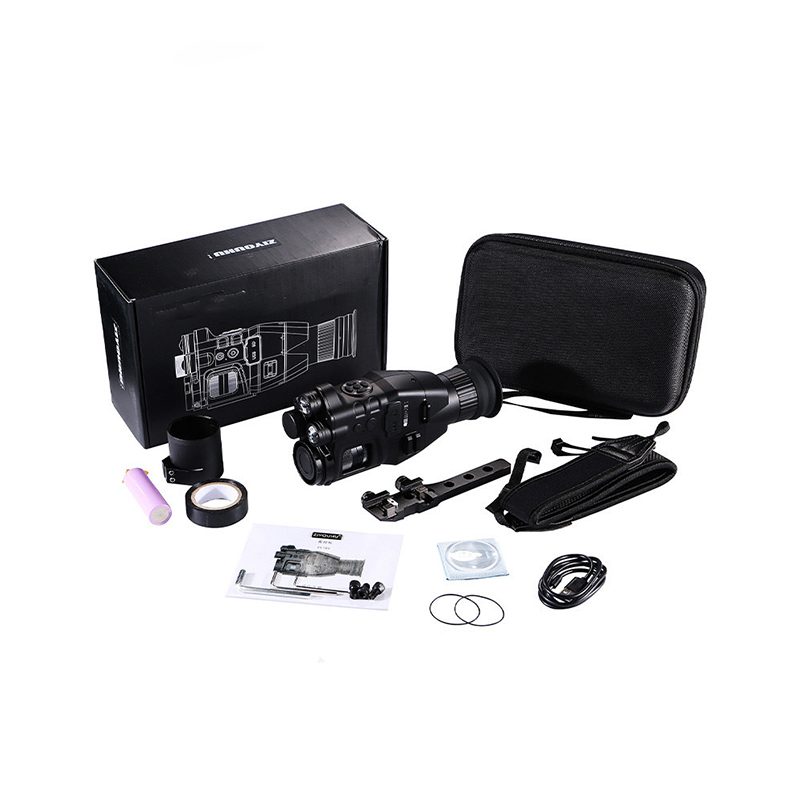

package

40-48mm Adapter / 21700 Li Battery / Diopter Lens / USB Cable / Protect box / Belt
