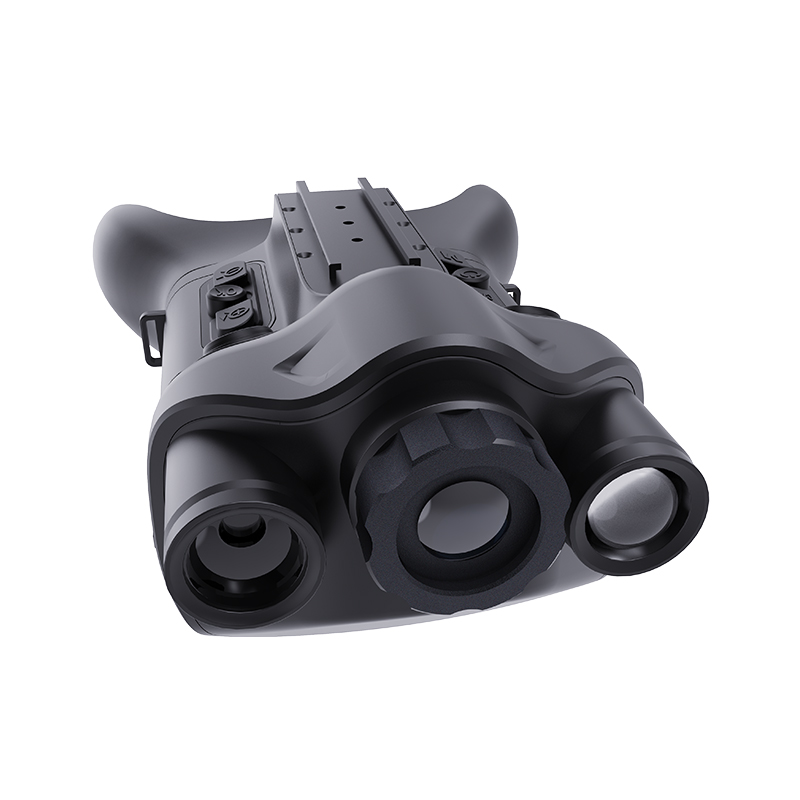

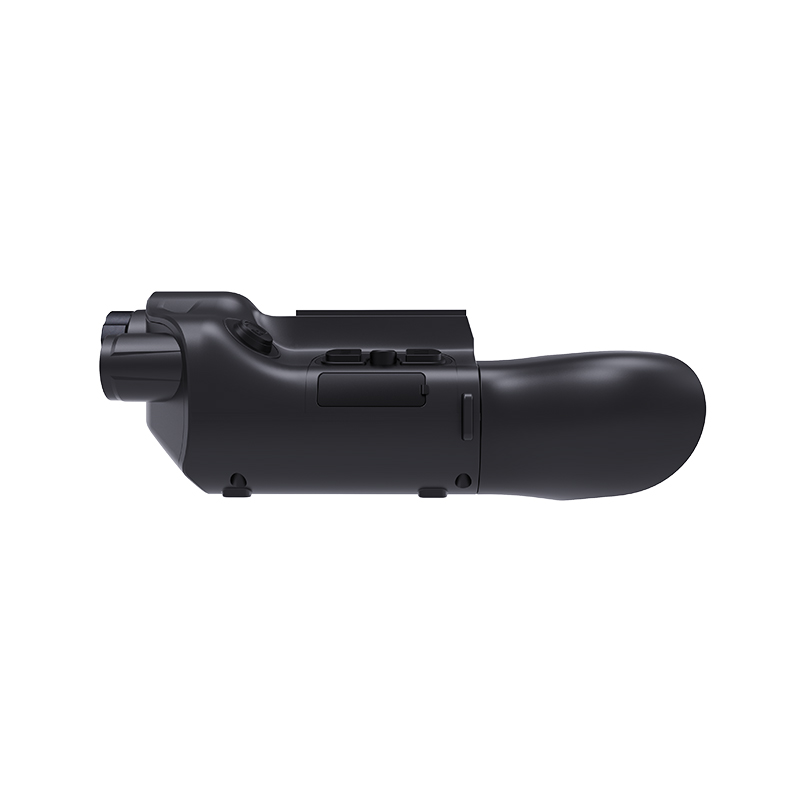

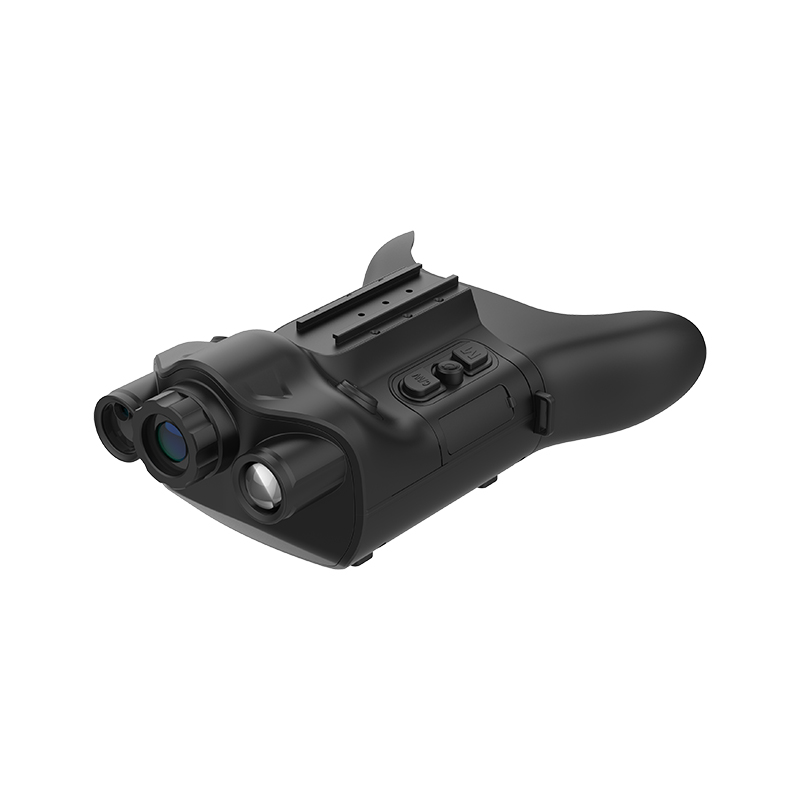

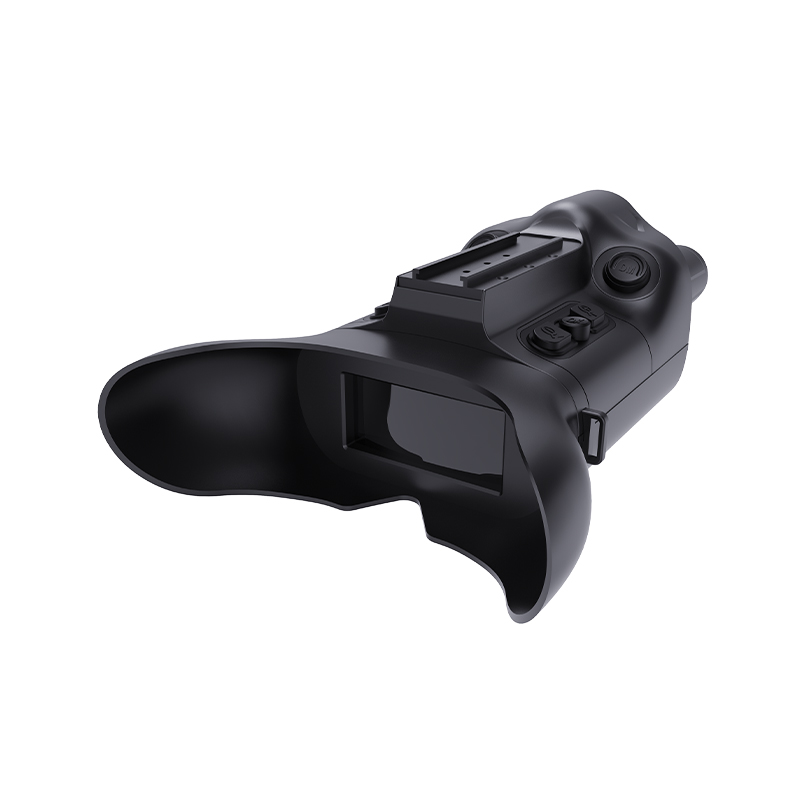

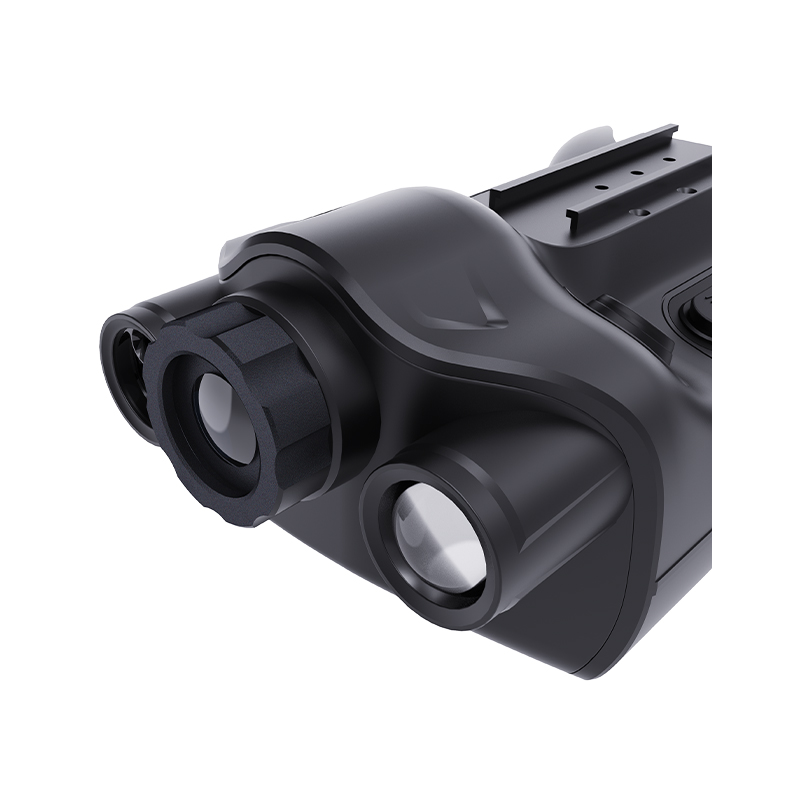

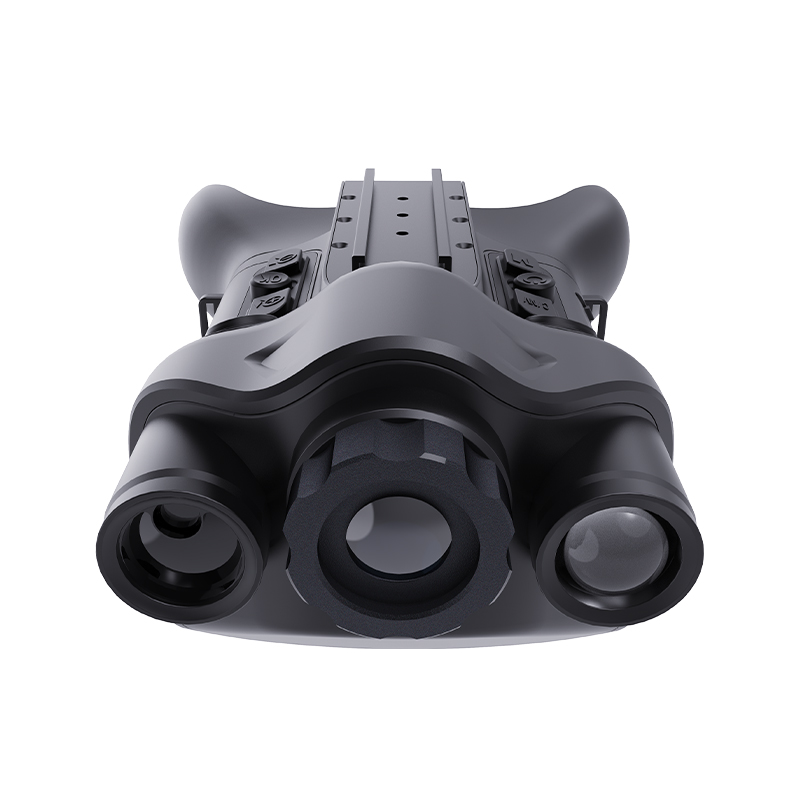

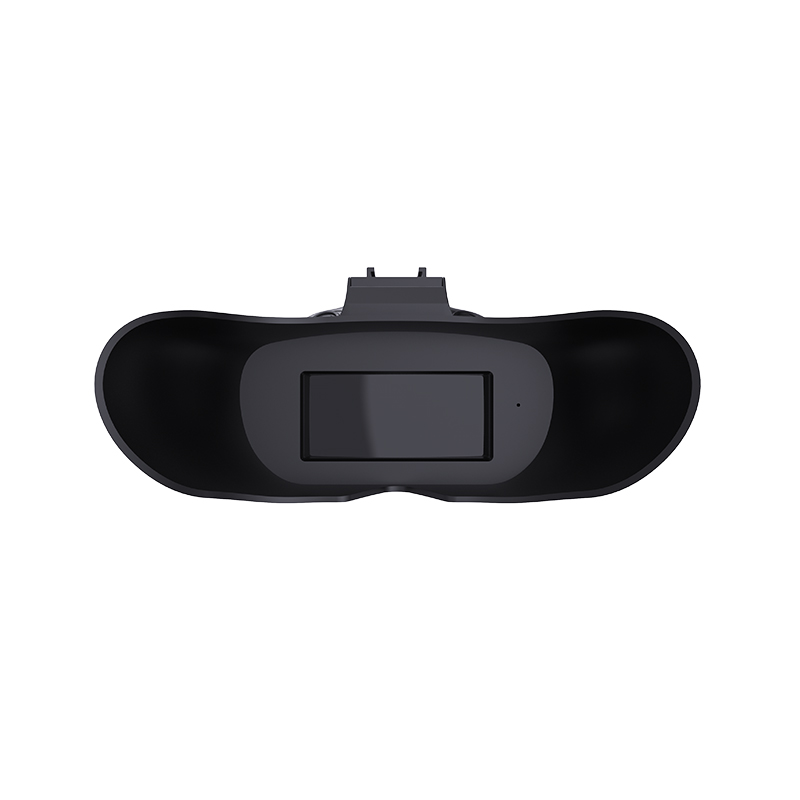

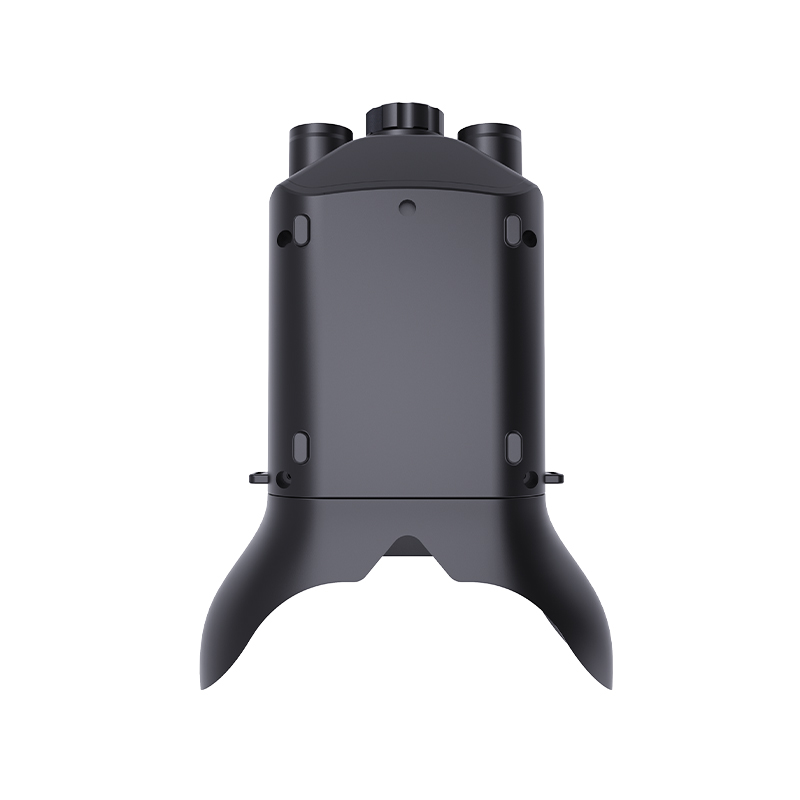

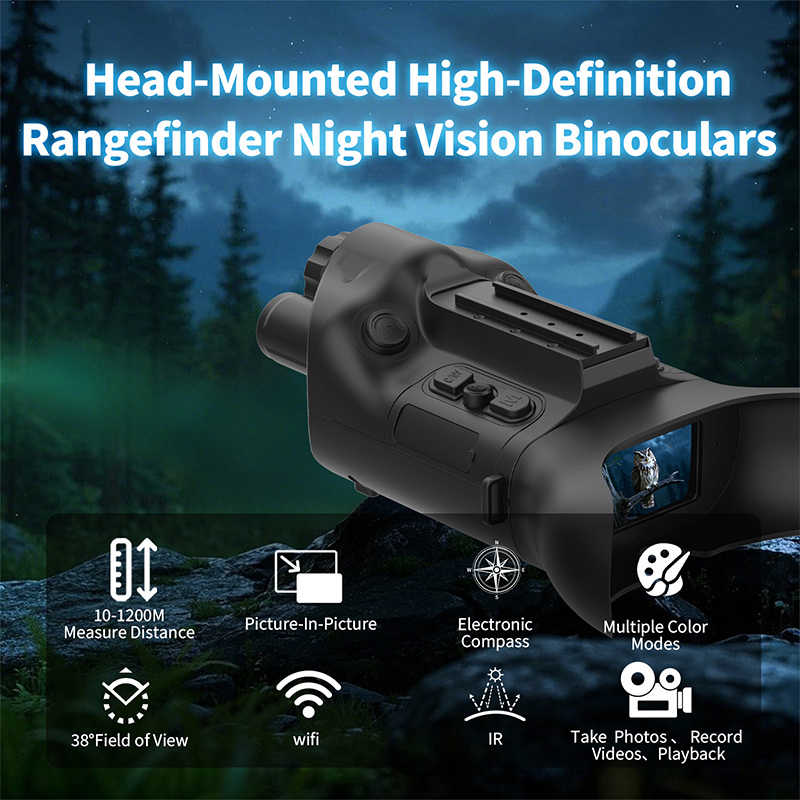

Rangefinder Night Vision Device


Model

NVG08S

Chip

1/2.7″CMOS 2 megapixels

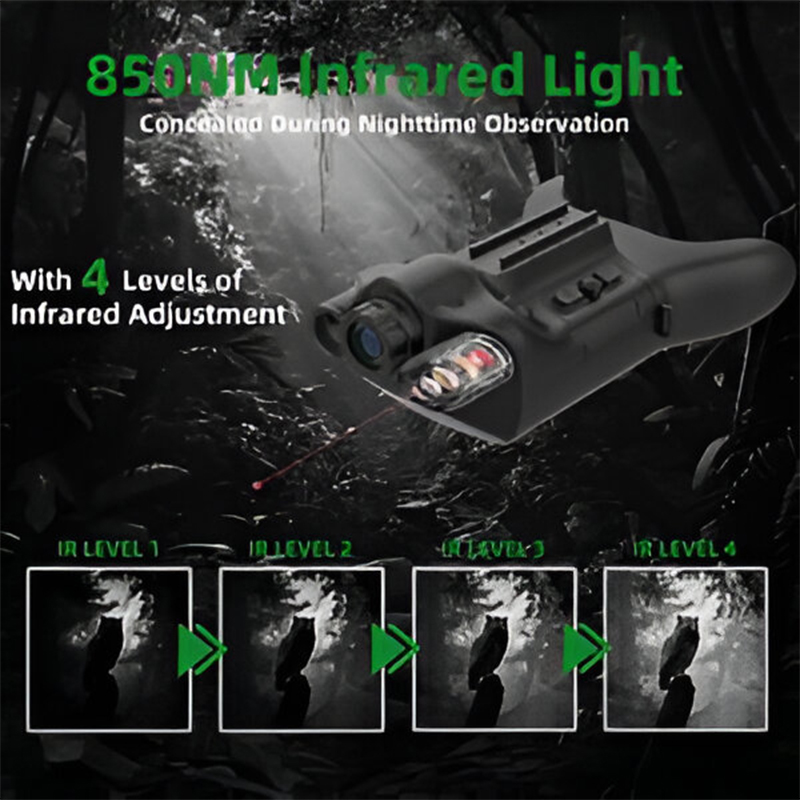

Infrared

3W,850mm,4-level adjustment

Lowlight

0.0001lux

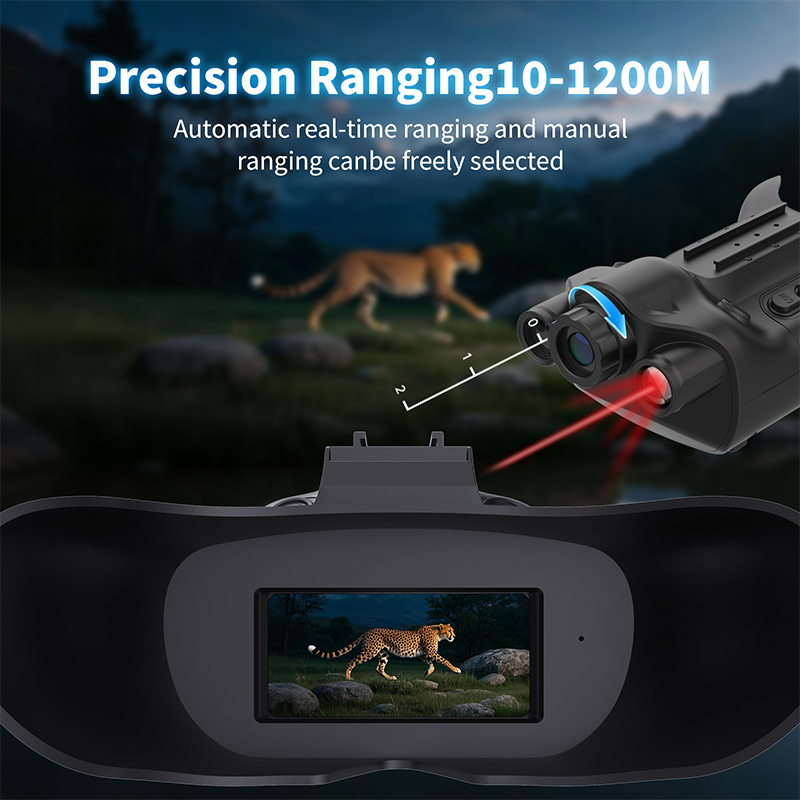

Rangefinder

10m-1200m

Model

10≤L≤100m :±1m

L＞100m :±(1+L*0.4%)m

Display

3″ LCD, 854*480

Photo resolution

7392*4160

Vidio resolution

2560*1440

Objective

12MM

Eyepiece

72MM*40MM

Field of view

38*22

Optical zoom

1X (fixed multiple)

Digital zoom

6X (adjustable)

Effective visual distance during daytime

1m-300m

Effective visual distance at night

1m-60m

Language

Multilingual

Button

8

Interface type

USB, TYPB-C

Battery

6000MAh 21700 lithium battery built-in,

can be powered directly by external power supply (power bank, 5v power supply)

Working hours

8 hours (IR on)/ 15 hours (IR off) Standby 180 days

Operating voltage range

3.45V -5.8V

Ambient temperature

-10~50℃

Protection level

IP56

Weight and dimensions

525g /  245*165*83mm

Including packaging weight and dimensions

1400g /  315*225*107mm

Packing weight and dimensions

10pcs/box/ 550*470*331cm /15kg

Electronic compass

yes

WIFI CONNECTION

yes

Photo and video

yes

Playback

yes

Picture-in-Picture (PIP)

yes

Display brightness adjustment

yes

Automatic switch

yes

Crossing auxiliary lines

yes

Time Adjustment

yes

Night Vision Enhancement

yes

Support mobile phone connection

yes

Installation method

yes

(bracket/handheld/head mounted)

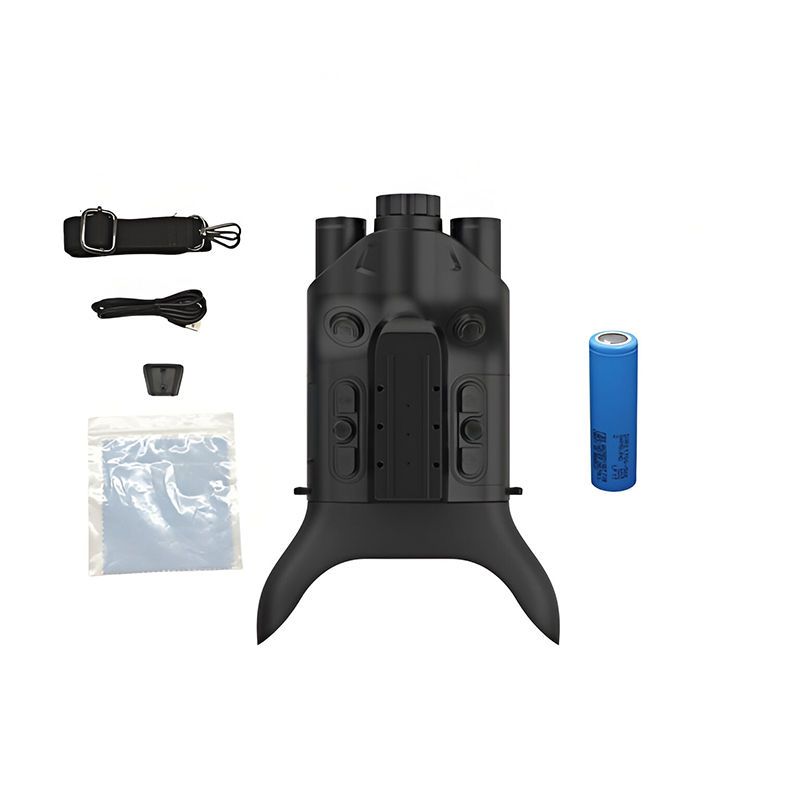

Standard packaging materials

Machine, packaging box, soft helmet, adapter tripod bracket, screws*2,lens cleaning cloth, USB cable (Type-C), shoulder strap, instruction manual
